VSAT BUC redundancy systems

A range of 1:1 hub-mounting redundancy systems is available for CODAN 6700 series VSAT C Band and CODAN 6900 series VSAT Ku Band Block Up Converters (BUCs).

CODAN satellite transceivers have been setting industry standards for performance and reliability since the early 1990’s. However, there are still critical applications where 1:1 redundancy protection is required.

CODAN offers a range of switching equipment that integrates easily with the CODAN 6700 series VSAT C Band or CODAN 6900 series VSAT Ku Band BUCs. The systems include interconnecting cables, mounting hardware and waveguide connections.

Simple configuration

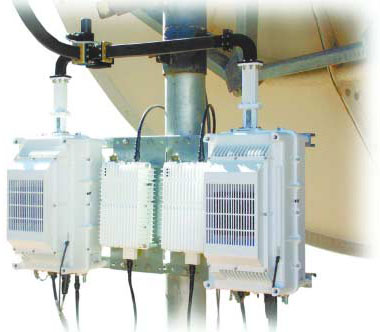

A complete system comprises two CODAN BUCs of any power rating, two Low Noise Block converters LNBs, and the outdoor mounting VSAT Redundancy Controller CODAN 6586 that provides integral IF switching and simultaneously controls the RF switches. This configuration, also called stream redundancy, ensures unambiguous, simultaneous switchover of both IF and RF paths in the transmit and receive directions.

The CODAN VSAT Controller is powered from the AC mains and is fitted with a high reliability power supply.

Flexible configuration

Flexible operating modes allow 'warm' or 'hot' standby operation. Automatic or manual control is available.

Generously rated terminations allow the off-line CODAN VSAT BUC to be continuously activated for true hot standby capability.

For systems requiring CODAN BUC redundancy only, a "transmit only" version of the VSAT Redundancy Controller CODAN 6586 is available.

Monitor and control

The optional VSAT Remote Controller CODAN 6570 provides system status indication, and remote manual control over both BUC and stream selection.

The optional CODAN Hand-held Controller 6560 may be connected directly to the VSAT Redundancy Controller CODAN 6586 to provide local control of the CODAN BUCs and CODAN Redundancy Controller.

CODAN 6586 based redundancy system for VSAT C Band BUCs

• Transmit/receive systems
  Combined WR229/N-connector waveguide switch for VSAT C Band BUCs with N-type outputs
  Separate WR137 and WR229 waveguide switches for VSAT C Band BUCs with waveguide outputs
• Transmit only system
  Single WR137 waveguide switch for VSAT C Band BUCs with waveguide outputs

CODAN 6586 based redundancy system for VSAT Ku-Band BUCs

• Transmit/receive systems
  Dual WR75 waveguide switches for VSAT Ku Band CODAN BUCs with waveguide outputs
• Transmit only system
  Single WR75 waveguide switch for VSAT Ku Band CODAN BUCs with waveguide outputs

Accessories

• Remote Controller CODAN 6570

CODAN quality and service

The VSAT redundancy equipment is built and tested in CODAN ISO9001 quality certified manufacturing facility.

CODAN fully trained staff and agents provide in-factory and in country training services, and complete installation and on-site assistance. This service is backed up by a 24 hour customer service line and a warranty of three years on manufacturing, design or component defects.

Technical specifications

IF/RF switching

Transmit and receive IF paths

Frequency range	950 to 1750MHz
Impedance	50 Ω
Receive path loss To on-line output To off-line output	2.0 dB maximum 50 dB minimum
Ripple	±0.2 dB typical
Transmit/receive isolation	90 dB minimum
Connectors	N female
VSWR	1.5:1 maximum
10MHz reference paths Loss to BUCs and LNBs	6.0 dB maximum
Transmit IF splitter Loss Ripple	8.0 dB maximum ±0.2 dB typical

VSAT C Band RF switching

Frequency range Transmit Receive	5.850 to 7.025 GHz 3.400 to 4.800 GHz
Switch loss Transmit Coaxial N-type switch Waveguide switch Receive	0.5 dB maximum 0.1 dB maximum 0.1 dB maximum
Impedance (N-type switch)	50 Ω
VSWR Transmit Coaxial N-type switch Waveguide switch Receive	1.3:1 maximum 1.1:1 maximum 1.1:1 maximum
Connectors Transmit Coaxial N-type switch Waveguide switch Receive	N female CPR137G flange, M5 threads CPR229G flange, M6 threads

VSAT Ku Band RF switching

Transmit and receive paths use waveguide switches with identical specifications

Frequency range Transmit Receive	13.75 to 14.5 GHz 10.95 to 12.75 GHz
Switch loss	0.05 dB maximum
VSWR	1.1:1 maximum
Connectors	WR75, PBR120 flange, M4 threads

Power supply

Size

Weight
